Packaging Number

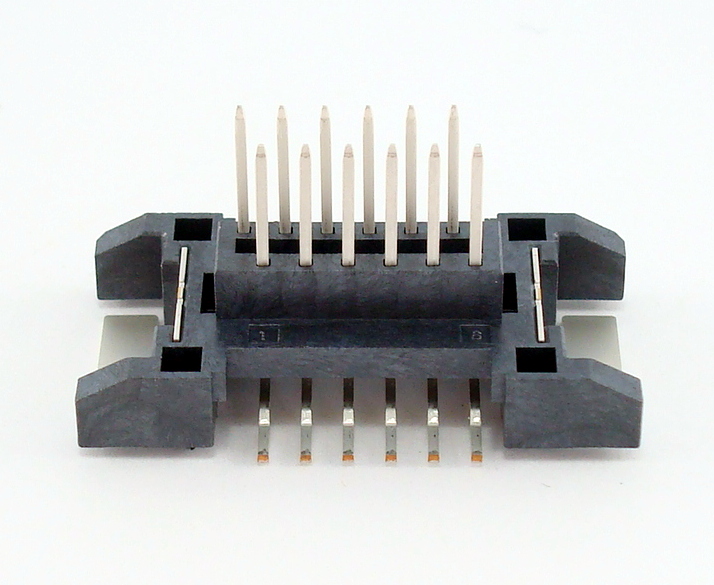

IMSA-6378B-12Y500
| Category: | Pin Header Connectors |
| Series: | 6378 |
| Drawings | |
|---|---|
| Product 2D: | PDF ↓ |
| Packaging 2D: | PDF ↓ |
| Product Details | |
|---|---|
| Floating: | No |
| Connection Orientation: | Straight/Vertical |
| Pitch: | 2.2 |
| Pin Count: | 12 |
| Plating: | Tin |
| Mount: | SMT |
| Boss Type: | Location pin |
| Vacuum Tape Included: | No |
| Terminal Material: | Phosphor Bronze |
| Part Height: | 1.1-1.6 |
| Base | |
| Base Number: | A |
| Mold Material: | PA9T |
| Packaging Type: | Tray |
| Mating | |
| Mating Pin size / Thickness: | 1.0 |
| Mating Length / Height: | 3.2 |
| Tail Length: | 3.2 |
| Total Pin Length: | 15.7 |
| Environmental | |
| Beryllium & Halogen Free: | No |
| Advanced | |
| High Speed: | No |
