Guaranteed Connection

Increases the chances of proper contact by cleaning and adding a redundant two-point-contact.

Explore Products

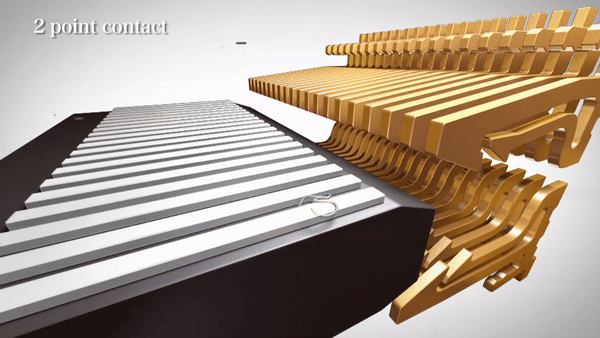

What Is Two Point Contact?

IRISO's Two Point Contact Technology cleans contaminants and ensures a proper connection with the use of redundant contacts. This second contact dramatically increases the chances to make clean contacts despite the common presence of foreign substances that contaminate the connection. Connectors using Two Point Contact are highly reliable and extra tolerant of assembly error.

How It Works

Cleaning The Surface

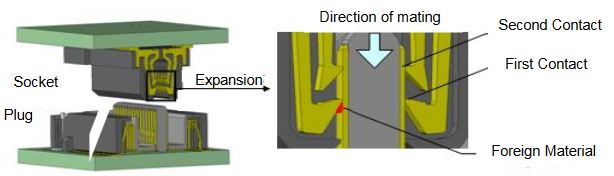

The front contact cleans the contaminating substance off the connection area to create a clean surface for the rear contact.


Redundant Contacts Ensure Connection

The two male contacts run along the same path on the mating receptacle’s terminal surface.The first contact cleans the surface allowing the rear contact to make a clean connection.
